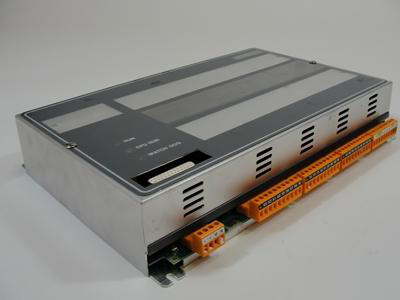

PCA0 M24

PCA0 M12   PCA0 M14  PCA0 M22

The PCA0 M24 controller utilises the more advance Level 2 instruction set that allows it to communicate with external devices such as a PC or PID controller. Two versions of the PCA0 M24 are available.

Although now obsolete, we are still able to provide technical support and, in some cases, spare parts for PCA0 systems. Replacement parts, where available, are now very expensive and we may recommend that the more cost-effective solution is to convert to a new controller.

For customers wishing to convert their unsupported/undocumented SAIA controllers to new SAIA versions or a different platform for example, Siemens or Mitsubishi we can reverse engineer the SAIA statement listed code and convert this to Ladder, Fupla or Graftec.

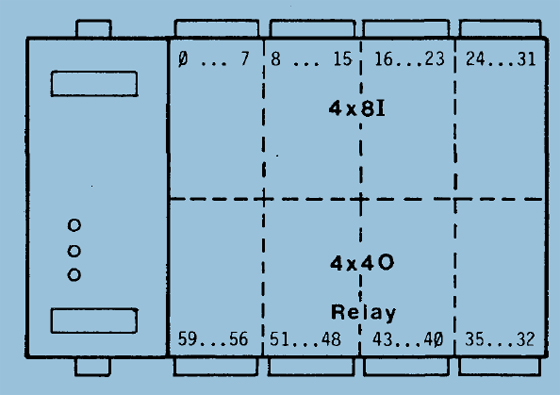

PCA0 M24R has 32 inputs rated at 24V DC and 16 outputs on relay contacts rated at max. 3A 250V AC

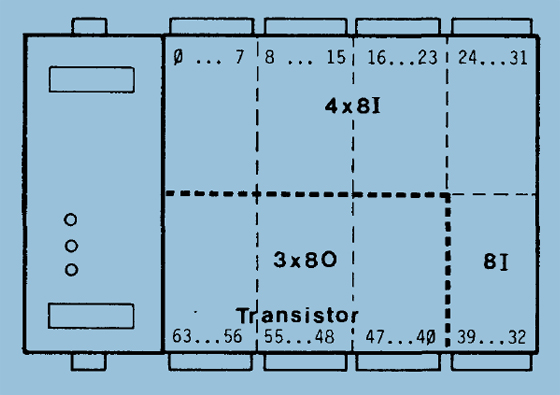

PCA0 M24T has 40 inputs rated at 24V DC and 24 transistor outputs each rated at 0.5A 24V DC

Other non-standard I/O configurations were produced by SAIA on request.
