Digital input / output

Simulators are made to order. The standard designs are shown below but can also be made to suit individual customer's requrements. Prices shown are for the standard design.

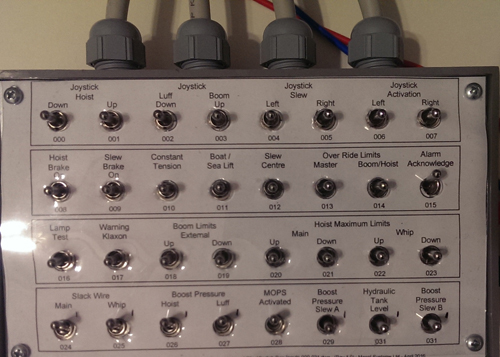

Switch inputs

32 Channel Digital Input Box including both Momentary and Static switch functions, requiring a nominal 24VDC supply connected via 4mm Banana Sockets. Outputs comprise of four 10 core cables (100cm) with pinned fly-leads and colour coded, for connection to your Input Module(s).

Price £501

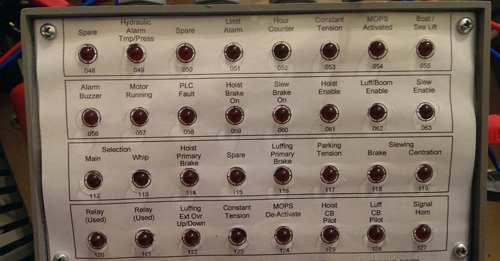

LED Outputs

32 Channel LED Output Indicator Box requiring a nominal 24V DC supply connected via 4mm Banana Sockets. Outputs comprise of four 10 core cables (100cm) with pinned fly-leads and colour coded, for connection to your Output Module(s).

Price £469
