Analogue input / output

Simulators are made to order. The standard designs are shown below but can also be made to suit individual customer's requrements. Prices shown are for the standard design.

Variable voltage inputs

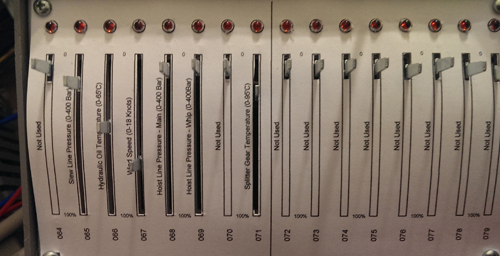

16 Channel Analogue Slider Box providing a 0 to +10V DC variable voltage with 16 channel output intensity LED's for visual indication. Requires a nominal 24VDC supply connected via 4mm Banana Sockets.

Outputs comprise two 10 core cables (100) with pinned fly-leads and colour coded, for connection to your Analogue Voltage  Module(s).

Price £569

Variable current inputs

16 Channel Analogue Slider Box providing a 0 to +20mA DC (120 ohm) variable current with 16 channel output intensity LED's for visual indication. Requires a nominal 24VDC supply connected via 4mm Banana Sockets.

Outputs comprise two 10 core cables (100cm) with pinned fly-leads and colour coded, for connection to your Analogue Current Module(s).

Price £565
